Pioneer, GM-A6704
4-Channel Bridgeable Amplifier (1000W)
Give into your deepest desire for power. Work it out how you want with the bridgeable amps. Just consider the consequences whatever you do: pure and clean, distortion-free power.
The GM-A6704 will ignite your system, but keep the heat under wraps. These amps are techno wonders and will rumble you to the core.
Specifications
| HPF | 40-500Hz (-12 dB/oct) |
| Speaker Terminals | Screw-type |
| Speaker Input Level | 3 - 26 V |
| Max. current consumption | 31A |

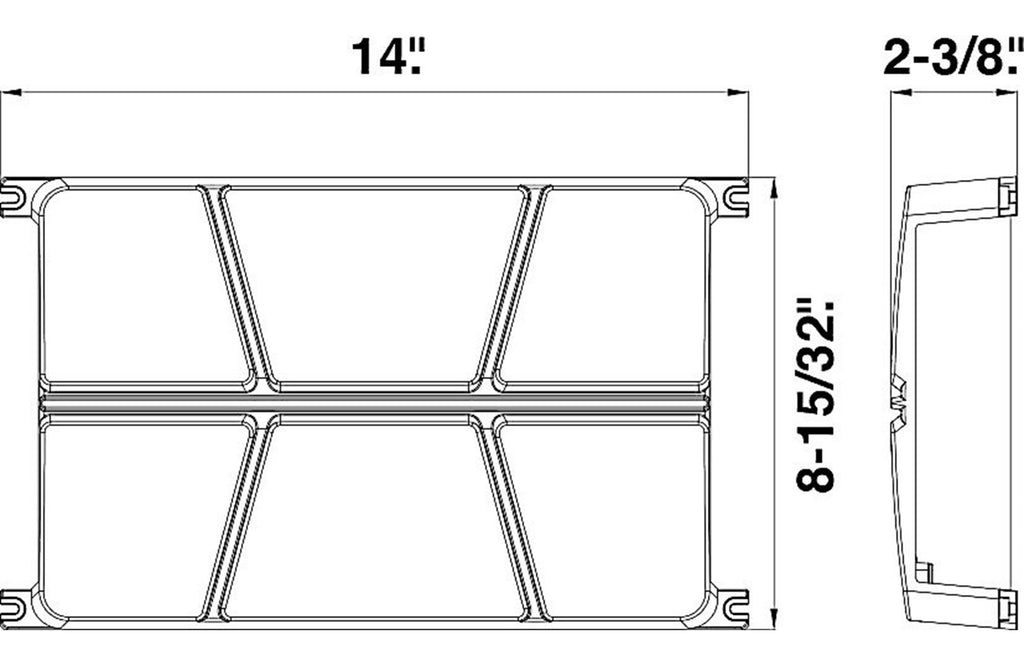

| Chassis size (W x H x D) | 356(W) X 60(H) X 215(D) |
| Unit weight | 2.2 |
| Maximum power | 1000W (Bridged) or 4 x 170W (4 Ω) or 4 x 250 W (2 Ω) |
| CEA 2006 Power | 4 x 60W (4 Ω) |
| Continuous power output | 4 x 60W (4 Ω) or 4 x 95W (2Ω) or 2 x 190 W (4Ω bridged) |
| Variable LPF | |
| Load impedance capability | 2-8 ohm allowable (stereo) |
| Frequency response | 10Hz ~ 70kHz (+0dB , -3dB) |
| Distortion | < 0.05 % |
| S/N ratio | > 95 dB |
| Bass Boost | 50Hz; 0-12dB |
| LPF | 40-500Hz (-12 dB/oct) |
