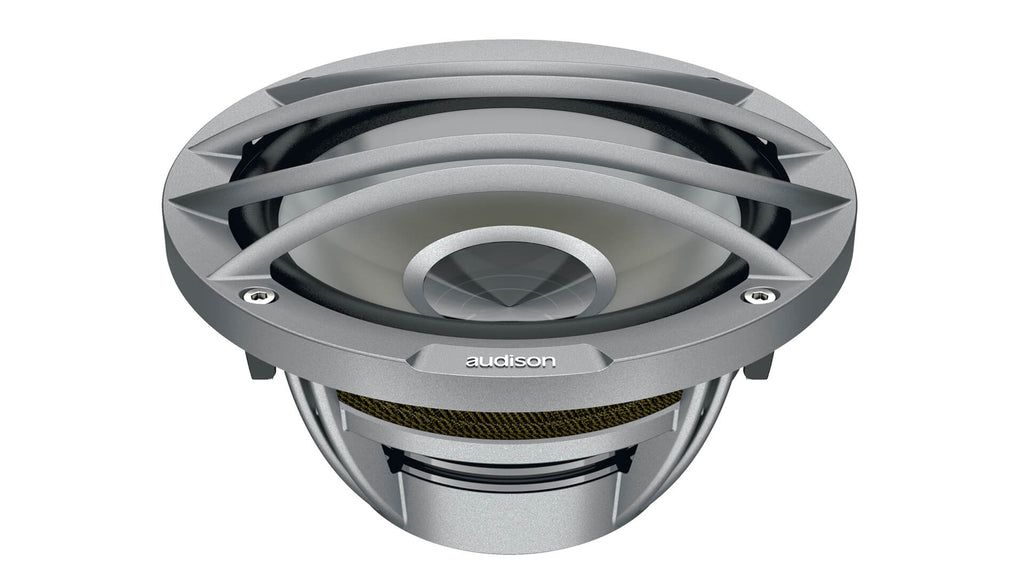

Audison, Thesis TH 6.5 II Sax

TOTAL TRANSPARENCY

The TH 6.5 II Sax was born from a blank sheet with the aim of overcoming all the limits dictated by compromise-oriented design choices. This philosophy allowed us to obtain extreme performance and a design projected into the future, faithful to the inspiring principle of maximum transparency of the musical message.

MAXIMUM LINEARITY, MINIMUM INDUCTANCE, EXCELLENT VENTILATION

The magnetic circuit uses a N48 “H-grade” Neodymium magnet that releases a very high quantity of energy and is ultra stable in temperature, ensuring an unparalleled dynamic. The geometry of the magnetic group has been optimized through a finite element simulation software to maximize efficiency by concentrating the magnetic field in the gap. A great deal of research has been carried out to reduce the modulation of the voice coil inductance by magnetically saturating the motor poleand using an aluminium short-circuit ring that also allows a greater extension towards the mid frequencies.

TOTAL ABSENCE OF MECHANICAL COMPRESSION

The development of the suspension system, a crucial element for each transducer, required a long research work: the development team created computational models to simulate every aspect of the multi-physical behavior of the loudspeaker. The spider was designed thanks to a long series of mechanical simulations performed to define its structure: a large elastic surface with 5 waves, ensuring an improved distribution of the elastic force; waves profile and gluing optimized to obtain the best symmetry in the voice coil and basket connection areas; spider composition made of a mix of two fibers to achieve the best elastic linearity, without mechanical compression effects even at high excursion levels.

Like the spider, the surround was also designed using mechanical simulations. The result is guaranteed by: use of natural rubber IIR; profile optimized to ensure wide excursion; maximization of linear elastic behavior without mechanical compression effects.

TOTAL ABSENCE OF THERMAL COMPRESSION

The 50 mm mobile coil in CCAR (Copper Clad Aluminum Ribbon), wound with flat wire to obtain a very compact winding, maximizes the force factor and at the same time allows for optimal heat dissipation.

TOTAL ABSENCE OF AERODYNAMIC COMPRESSION

The mechanical structure of the TH 6.5 II is a perfect combination of design and performance. The aluminium alloy basket incorporates all the components ensuring high precision in the various couplings. The structure featuring four pairs of spokes allows for solidity and damping of the vibrations offering very low resistance to the cone air flow. The wide spider distributes the elastic load optimally. A generously sized hole, protected by a filter cloth, prevents air compression phenomena under the spider, eliminating deleterious resonance at medium frequencies. The central opening in the bottom-plate ensures optimal decompression of the air column inside the voice coil and the output expanded material diffuses the turbulences and protects it from ingoing foreign bodies.
