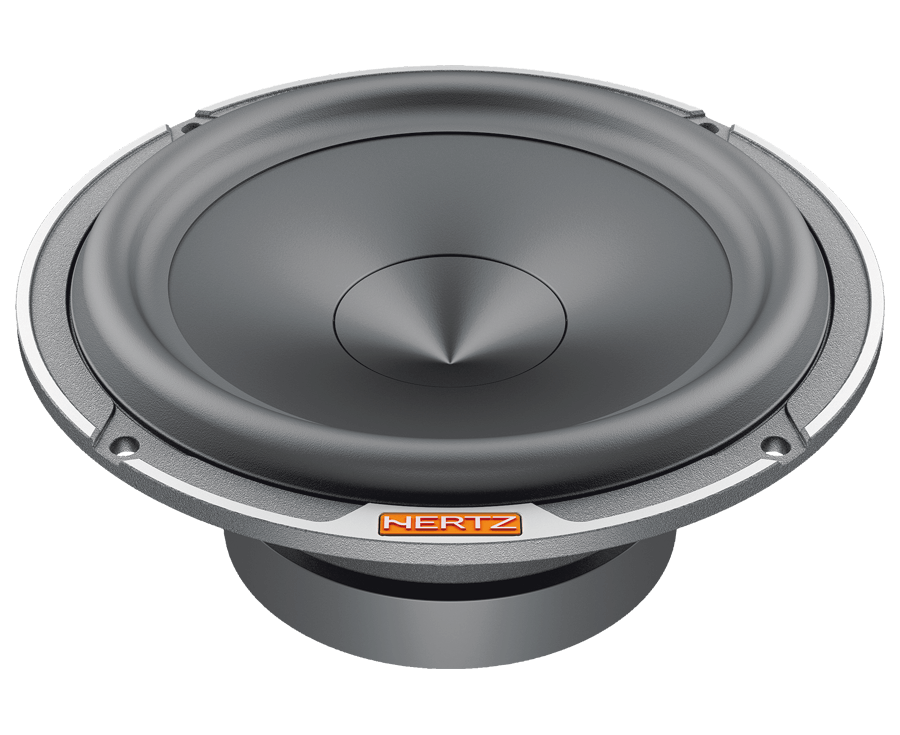

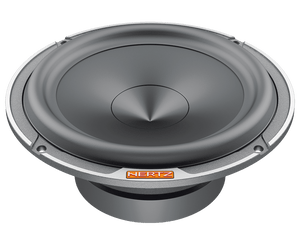

Hertz, Mille Pro MP165P.3
The MP 165P.3 car audio woofers electro-acoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The voice coil with a generous 14 mm height, has a nominal 3 Ω impedance in addition to an increased power handling. These features provide the ability to maximally exploit the power of the Hertz HCP and HDP amplifiers as well as all the 2 Ω stable electronics. The ferrite 95 mm diameter magnet enables a +/-4.5 mm voice coil linear excursion, ensuring utmost control at all times. The Boundary Free Surround moves a bigger amount of air, and the V-cone® profile improves the offaxis dispersion, the real in-car listening condition. The sophisticated aluminium alloy basket neutralizes the undesired vibrations.
| Size mm (in.) | 165 (6.5) |
| Power Handling - Peak W | 200 |
| Power Handling - ContinuousW | 100 |
| Impedance Ω | 3 |
| Frequency response Hz | 45 ÷ 4,5k |
| Sensitivity dB SPL | 94 |
| Voice coil Ø mm (in.) | 25 (1) |
| Magnet | High density flux ferrite |
| Cone/Dome | Pressed-pulp cone with cotton fibers |
Features
1.PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
2.EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
3.“BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
4.HIGH DENSITY FLUX FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
5.BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
