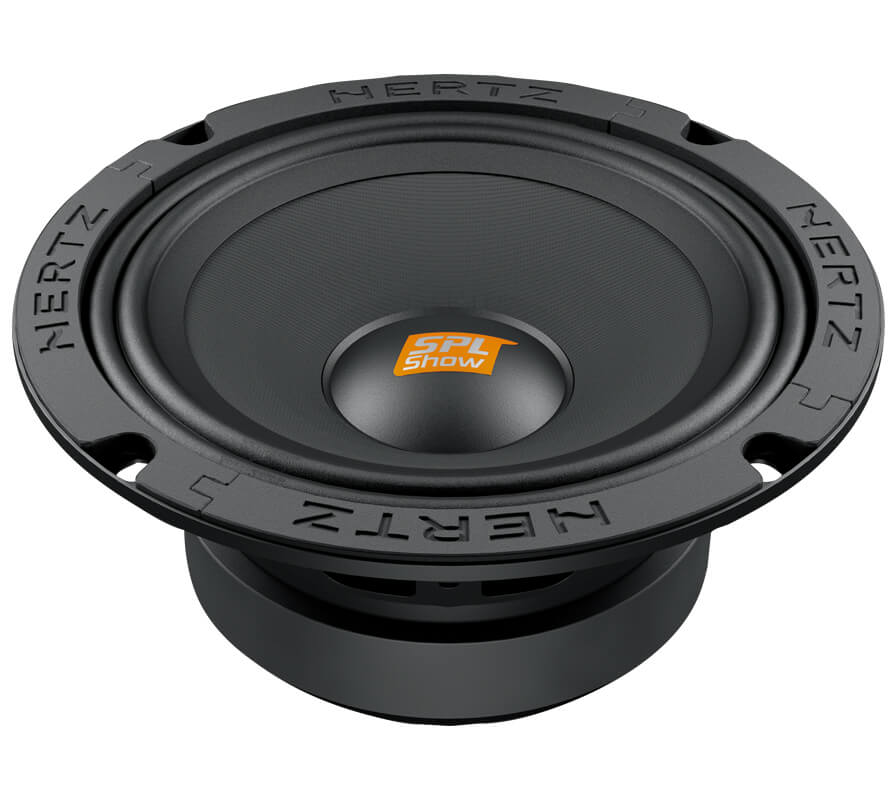

Hertz, SPL Show SV 165.1

Hertz

€137,00
Available for pre-order



The SV 165.1 car audio midrange can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.

Size mm (in.) 165 (6.5)
Power Handling - Peak W 400
Impedance  4
Frequency response Hz 100 ÷ 10k
Sensitivity dB SPL 97
Voice coil Ø mm (in.) 38 (1.5)
Magnet High density flux ferrite
Cone/Dome Ultra light pressed paper
