Hertz, SPL Show SV 200.1

Hertz, SPL Show SV 200.1
Hertz, SPL Show SV 200.1 Hertz, SPL Show SV 200.1

Hertz

€249,00
Available for pre-order



← Previous Product Next Product →

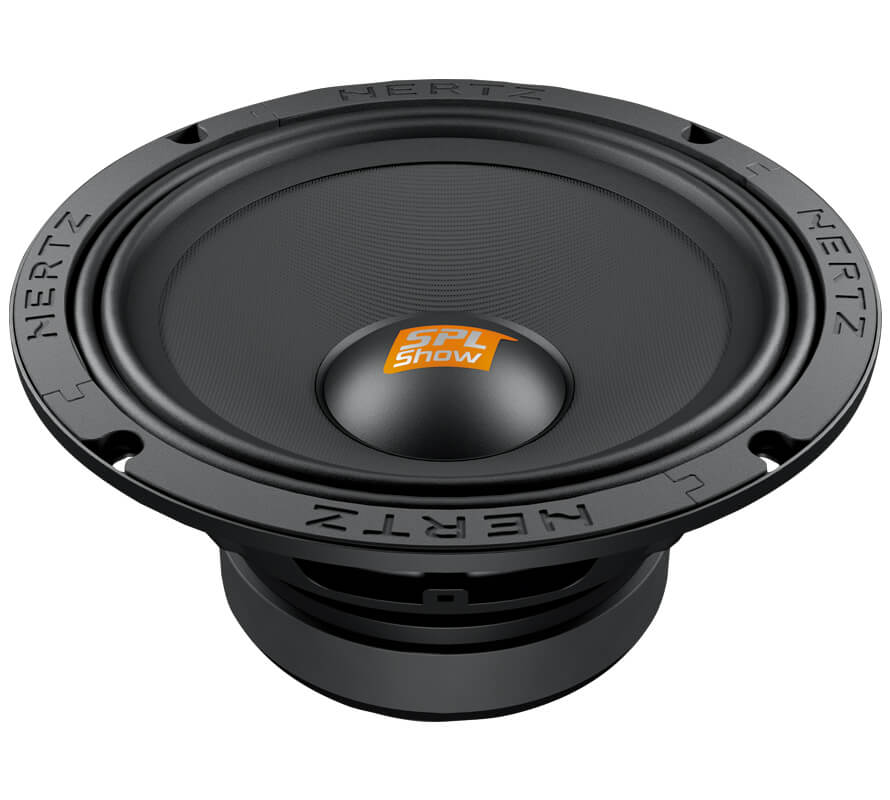

The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.

Size mm (in.) 200 (8)
Power Handling - Peak W 500
Impedance Ω 4
Frequency response Hz 100 ÷ 9k
Sensitivity dB SPL 100
Voice coil Ø mm (in.) 38 (1.5)
Magnet High density flux ferrite
Cone/Dome Ultra light pressed paper
